Request a Quote

Get a customized quotation for your crane and lifting equipment needs. Our engineering team will respond with a fully specified crane solution.

Contact Information

Need immediate assistance? Reach out to us directly or fill out the quotation form.

Headquarter

Büyükkayacık Osb Mahallesi 3. Organize Sanayi Bölgesi 9. Sokak No: 33, D:1, 42250 Selçuklu,
Konya, Türkiye 42000

Call Us

+33 7 51 66 08 06
+90 (332) 236 31 87

Email Us

sales@wimac.fr

Working Hours

Mon - Fri: 08:00 - 18:00
Sat: 09:00 - 14:00

Follow Us

Quotation Request Form

Select your product type and fill in the specifications. Our team will provide a detailed quote within 24-48 hours.

Overhead Crane Specifications

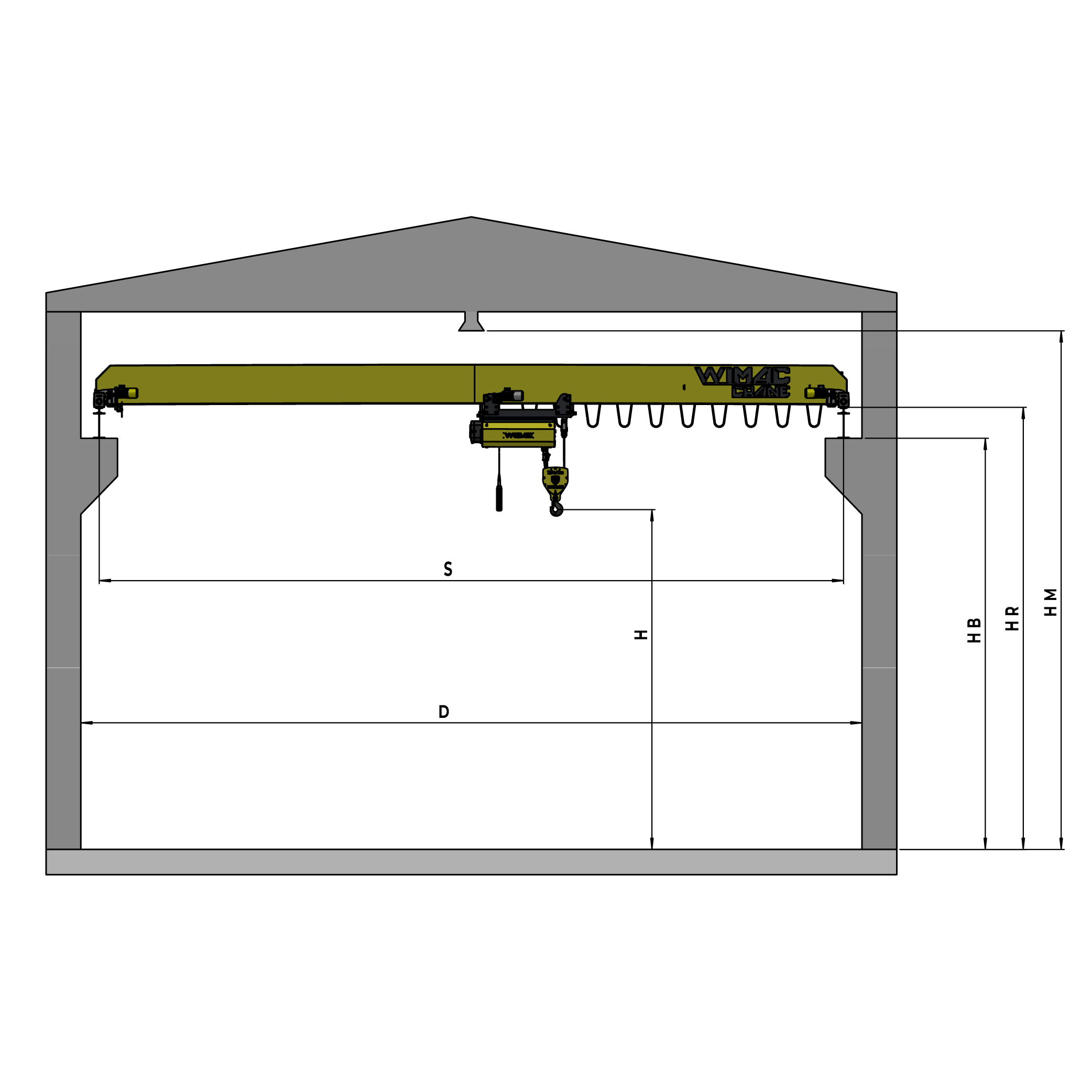

Overhead Crane Diagram

Overhead Crane - Single & Double Girder Bridge Cranes

*
*
Capacity: Refers to the maximum load capacity you require for the crane to lift safely.
*
Crane Span (S): It refers to the horizontal distance the crane occupies between the rails. This is the width the crane spans from one end to the other.
*
Rail Length: It refers to the total length of the rails on which the crane moves. This is the measurement of the distance the crane can move forward and backward.
*
Lifting Height (H): It refers to the maximum distance the crane can lift the load from the ground.
Height from Ground to Bridge (HB): The height from the ground to the bottom of the bridge.
Height from Ground to Rail (HR): The height from the ground to the area where the crane will be installed.
Height from Ground to Ceiling (HM): The height from the ground to the ceiling.

Gantry Crane Specifications

Gantry Crane Diagram

Gantry Crane - Full Gantry, Semi Gantry & L-Type

*
*
Capacity: Refers to the maximum load capacity you require for the crane to lift safely.
*
Crane Span (S): It refers to the horizontal distance the crane occupies between the rails. This is the width the crane spans from one end to the other.
*
Rail Length: It refers to the total length of the rails on which the crane moves. This is the measurement of the distance the crane can move forward and backward.
*
Lifting Height (H): It refers to the maximum distance the crane can lift the load from the ground.
Height from Ground to Bridge (HB): The height from the ground to the bottom of the bridge.
Right Cantilever (S1): It is the area on the right side of the gantry crane that extends beyond the rails and allows the crane to operate in the area outside the rails.
Left Cantilever (S2): It is the area on the left side of the gantry crane that extends beyond the rails and allows the crane to operate in the area outside the rails.

Jib Crane Specifications

Jib Crane Diagram

Jib Crane - Wall-Mounted & Free-Standing

*
Capacity: Refers to the maximum load capacity you require for the crane to lift safely.
*
*
*
Lifting Height (H): It refers to the maximum distance the crane can lift the load from the ground.
*
Rotation Angle: The degree of slewing capability of the jib arm.

Lifting Unit Specifications

Lifting Unit Diagram

Lifting Unit - Double Girder & Monorail Systems

*
*
Vincin güvenli bir şekilde kaldırılmasını istediğiniz maksimum yük miktarını ifade eder. / Refers to the maximum load capacity you require for the crane to lift safely.
*
Vincin raylar arasında yatay olarak kapladığı mesafeyi ifade eder. Bu, vincin bir uçtan diğer uca kadar uzandığı genişliktir. / It refers to the horizontal distance the crane occupies between the rails.
*
*
Vincin yükü zeminden kaldırabileceği maksimum mesafeyi ifade eder. / It refers to the maximum distance the crane can lift the load from the ground.
Zeminden köprünün alt kısmına kadar olan yükseklik. / The height from the ground to the bottom of the bridge.
Vincin kurulacağı alanın yerden yüksekliği. / The height from the ground to the area where the crane will be installed.
Zeminden Tavana Yükseklik. / The height from the ground to the ceiling.
